Quick Details

  • Place of Origin: Hebei, China (Mainland)
  • Material: Stainless Steel Wire
  • Type: Weave Wire Mesh
  • Application: Screen
  • Weave Style: Plain Weave
  • Wire Diameter: 0.03-2.25mm
  • Technique: Woven
  • Model Number: R-349
  • Brand Name: R&K
  • Crimped wire mesh Material: stainless steel wire 301/302/304/321/316/316L320/2520
  • Crimped wire mesh Technical: Woven
  • Crimped wire mesh Type: Crimped wire mesh
  • Crimped wire mesh aperture: 0.1-3mm
  • Crimped wire mesh Feature: Solid structure,strong impact resistance
  • Crimped wire mesh Certification: SGS;ISO9001:2000

Packaging & Delivery

Packaging Details Kraft paper inside,air bubble film outside,then be put in a wooden case.
Delivery Time Shipped in 15 days after payment

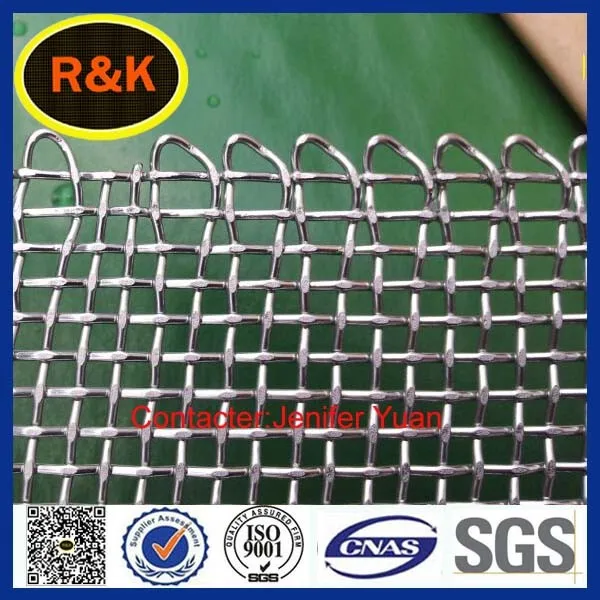

                       Stainless Steel Crimped Wire Mesh



Product Description

Crimped wire mesh details:

Material: stainless steel wire 301,302,304,316,316L,320,2520 ECT.



Process: After first rolling,two-way wavebending,locked bending,flat-topped cured,two-way bending,on-way wave bending,rectangular mesh weaving,mesh has woven solid,durable,mesh uniform characteristics.



Mesh count:1mesh-24mesh



Width: 1m/1.05m/1.2m/1.6m/2.0m/3.0m(as request)



Wire Diameter: 0.3mm~2.25mm



Hole size: 1.5mm~50mm



Roll size:25m/30m/50m



Hook: 60-180 degree, C hook available.



Hook Covered edge: galvanized metal or others





Crimped wire mesh features:



Solid structure

Strong impact resistance

Abrasion resistance,low cost

Uniform mesh to keep for a long time, and beautiful

Have very strong palsticity and toughness at room temperature and low temperature,non magnetic,has good resistance to intergranular corrosion.



Crimped wire mesh Application:



Stainless steel crimped wire mesh can be widely used in mining,sand stone,screening of raw coal and constructon,civil,aquaculture intustry,such as isolation and prodection.The stianless steel crimped wire mesh can also be used in acid,alkai conditions of pertoleum,chemical,marine industries such as filtrantion,screen and protection,make continuous glass reinforced,all kinds of industrial use basket,crafts,kitchen,storage basket in the refrigerator.





Crimped wire mesh specification:



Wire Guage SWGWire Dia.(mm)MeshHole Size(mm)Weight:kg/m2
142.02114.2
84.0518115
250.50200.612.6
230.61180.83.4
240.55160.12.5
240.55140.124
220.71120.142.94
1912.30.181.45
64.81.2220
64.81220
64.80.7314
142.05.080.312
142.02.112.5
142.03.61.51.9

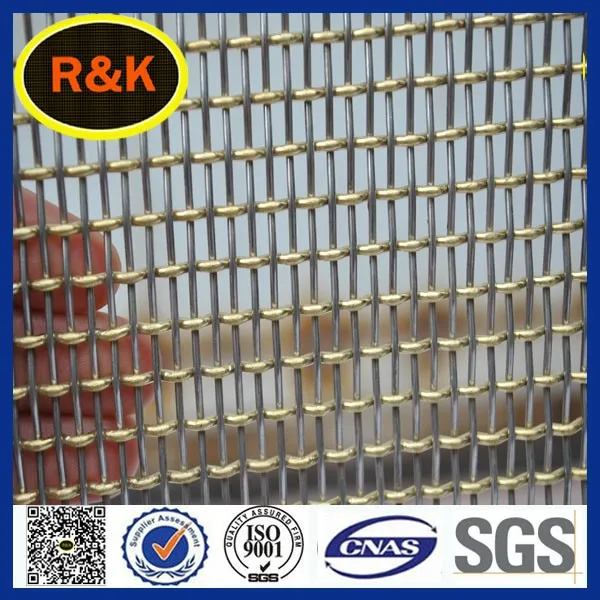

 Weave style:

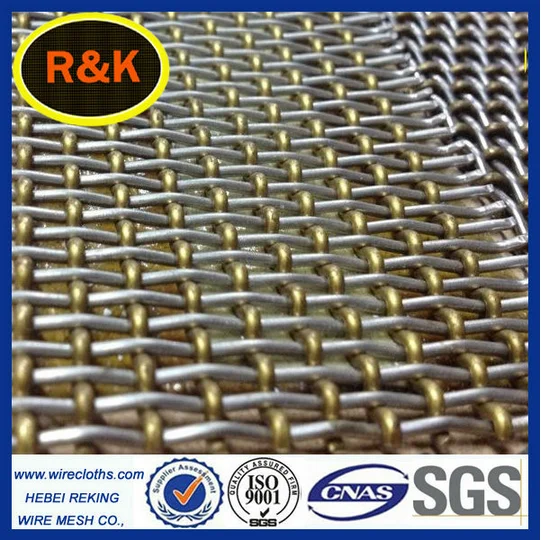

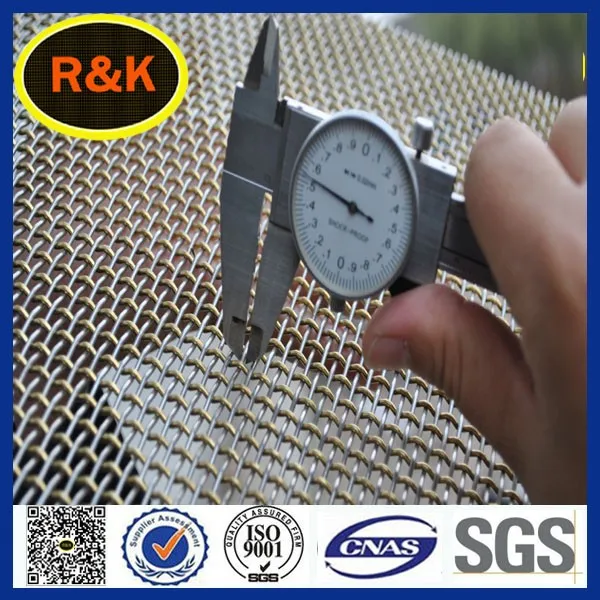

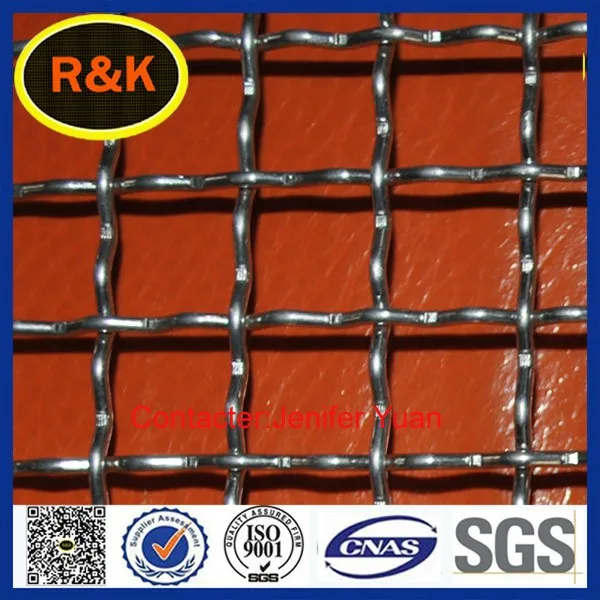

stainless steel crimped wire mesh display:

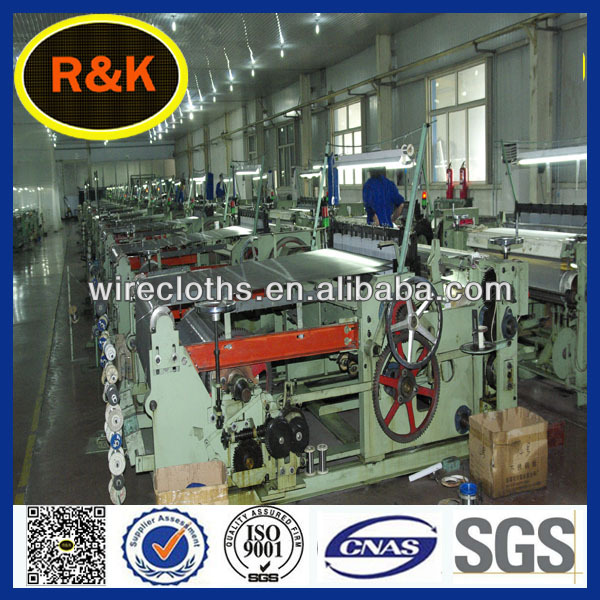

1G Grade clean Workingshop


Packaging & Shipping

Packaging:



Other stainless steel wire mesh like stainless steel screen printing mesh,steel filter screen mesh and filter discs.



stainless steel screen printing mesh and filter mesh





Our Services

1--If you have any questions, you can contact me freely.i am on service for you all the time.

2--OEM accerpted.

3--Any size we can customized for you as your requirement.

4--Payment terms:100%T/T,Western Union,Paypal,Escrow,Credit card.

4--our onlise add all online:



How to contact me?

Skype:rekingscreen,

Viber:8613784304512

Whatsapp:8613784304512

QQ:1405432427


Transport methods

Shipping select:

Courier: DHL/EMS/UPS/TNT/FedEx/EXPRESS

If have a large sufficient qty,we recommand you by SEA or by AIR.




Company Information

About us Hebei Reking Wire Mesh CO.,Ltd



Core value:Excellent Technical&High Quality, Delivery Timely&Best service



Our Crimped wire mesh is good in quality and competitive in price.We are local manufacturer, not only trading company,and we believe loyalty and quality are the key to a successful business transaction. Please feel free to contact me, and free samples are available for you.
